GreenEvolution 76 AD (2seals)
Choosing the right window material is essential for performance, durability, and design. Compare UPVC, aluminium, and steel window systems to find the best solution for your project in Indonesia.
GreenEvolution 76 AD (2 seals)
Window profile (frames):
Hardware:
Glazing:
The greenEvolution 76 AD profile system combines refined German engineering with modern design flexibility. Developed by Salamander Industrie-Produkte, this 76 mm platform is designed for projects that demand high residential comfort, solid energy performance, and long-term reliability.
Together with the top of the line Siegenia hardware, this combination is perfect for tropical homes that need energy efficiency and soundproofing.
5-Chamber Technology with Dual Sealing System (AD)
The greenEvolution 76 AD is based on an advanced 5-chamber construction with two continuous sealing levels (Anschlagdichtung system). This configuration delivers:
- Reduced energy consumption
- Improved acoustic insulation
- Strong resistance against wind and heavy rain
- Excellent structural stability
The optimized chamber geometry reduces thermal transmission through the frame and sash, helping to stabilize indoor temperatures — especially relevant in Indonesia’s climate where air-conditioning efficiency is critical.
The dual sealing system enhances both thermal and acoustic performance while ensuring reliable protection against driving rain and humidity.
The system is equipped with high-performance hardware from Siegenia, manufactured in Germany. This ensures:
- Precise locking and smooth operation
- Consistent gasket compression
- Enhanced security options
- Long-term mechanical durability
For glazing, we combine the Salamander profile with premium solutions from Glassolutions, part of Saint-Gobain. Depending on project requirements, the system supports high-performance double or triple glazing for optimized sound insulation and thermal control.
Double Glazing for superb Performance
The greenEvolution 76 AD comes with high-performance double glazing consisting of two panes separated by an insulating space. Combined with the central gasket system, this delivers:
- Reduced energy loss
- Increased sound insulation
- Stable indoor temperatures
- Enhanced living comfort
The synergy between double sealing and double glazing creates a very efficient window solution tailored for noise conscious developments in Indonesia.
Design Flexibility & Modern Manufacturing
The greenEvolution 76 platform is available in two visual variants:
- Classic (flächenversetzt – stepped design)
- Basic (halbflächenversetzt – semi-flush design)
Optimized frame and sash combinations provide both high structural stability and generous daylight penetration — an important architectural consideration for premium residences and villas.
Production utilizes advanced manufacturing technologies such as V-Perfect welding, where UPVC joints are fused with minimal visible seams, resulting in a refined, high-quality finish.
Whether single-sash, double-sash, triple configurations, with or without top lights or side panels — the greenEvolution 76 AD system offers full customization flexibility for Indonesian residential and light commercial projects.
UPVC Window colors and decors
Plan your project with us.
Get professional advice on quality windows, soundproofing, glazing options, and other helpful information for your project in
Jakarta, Bali and all other locations in Indonesia – fast and with no obligation
UPVC Window profile sections
UPVC Window – GreenEvolution 76 AD (2 seals)

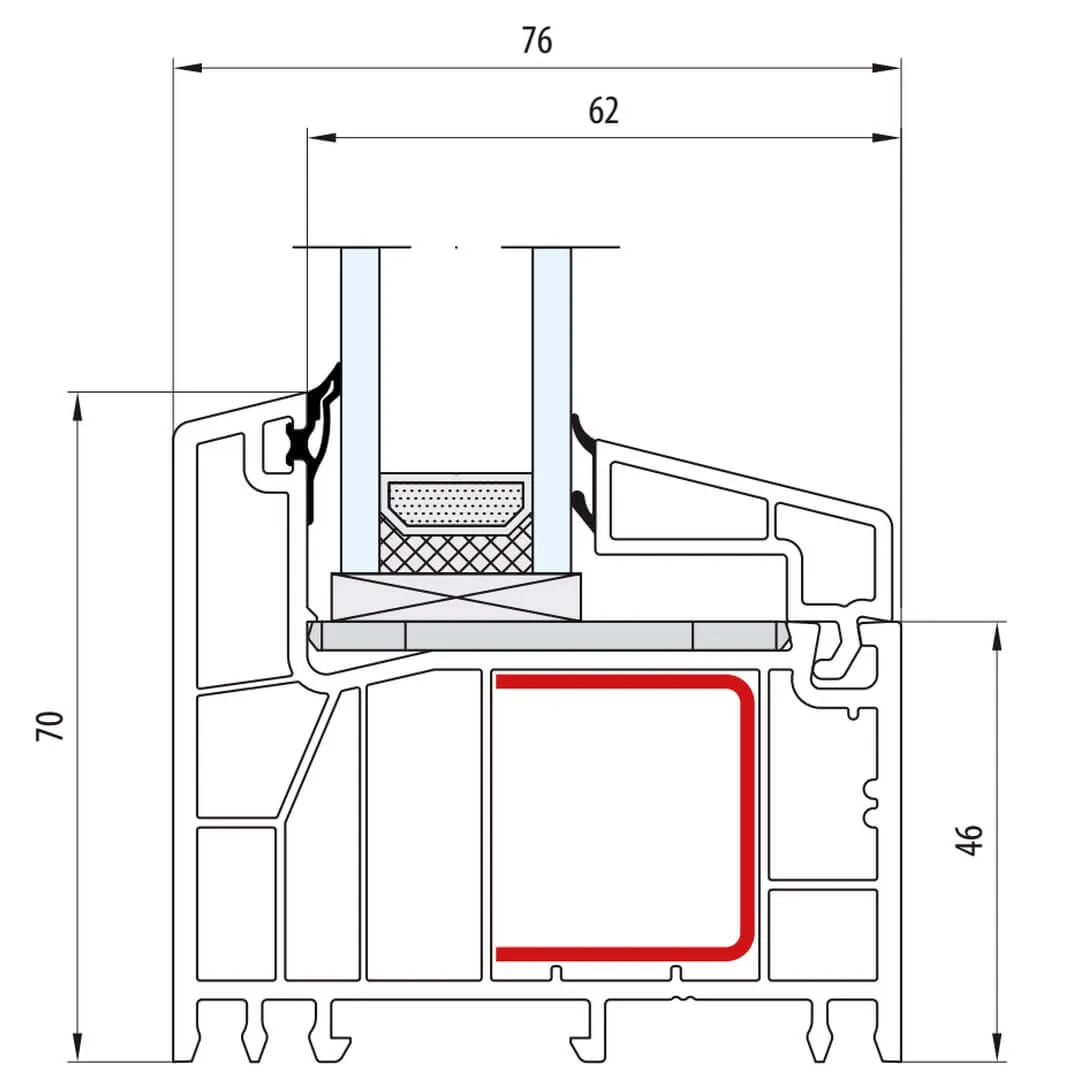

GreenEvolution 76 AD Fix 70mm 760003
GreenEvolution 76 AD Window – Classic-Line 118mm – 760003 – 761002
GreenEvolution 76 AD Window – Round-Line 118mm – 760003 – 761004
UPVC Window – GreenEvolution 76 with Renovation frame
GreenEvolution 76 AD Renovation frame fix 35 mm 760017
GreenEvolution 76 AD Renovation frame CL fin 35 mm – 760017 – 761002
GreenEvolution 76 AD Renovation frame RL fin 35 mm – 760017 – 761004

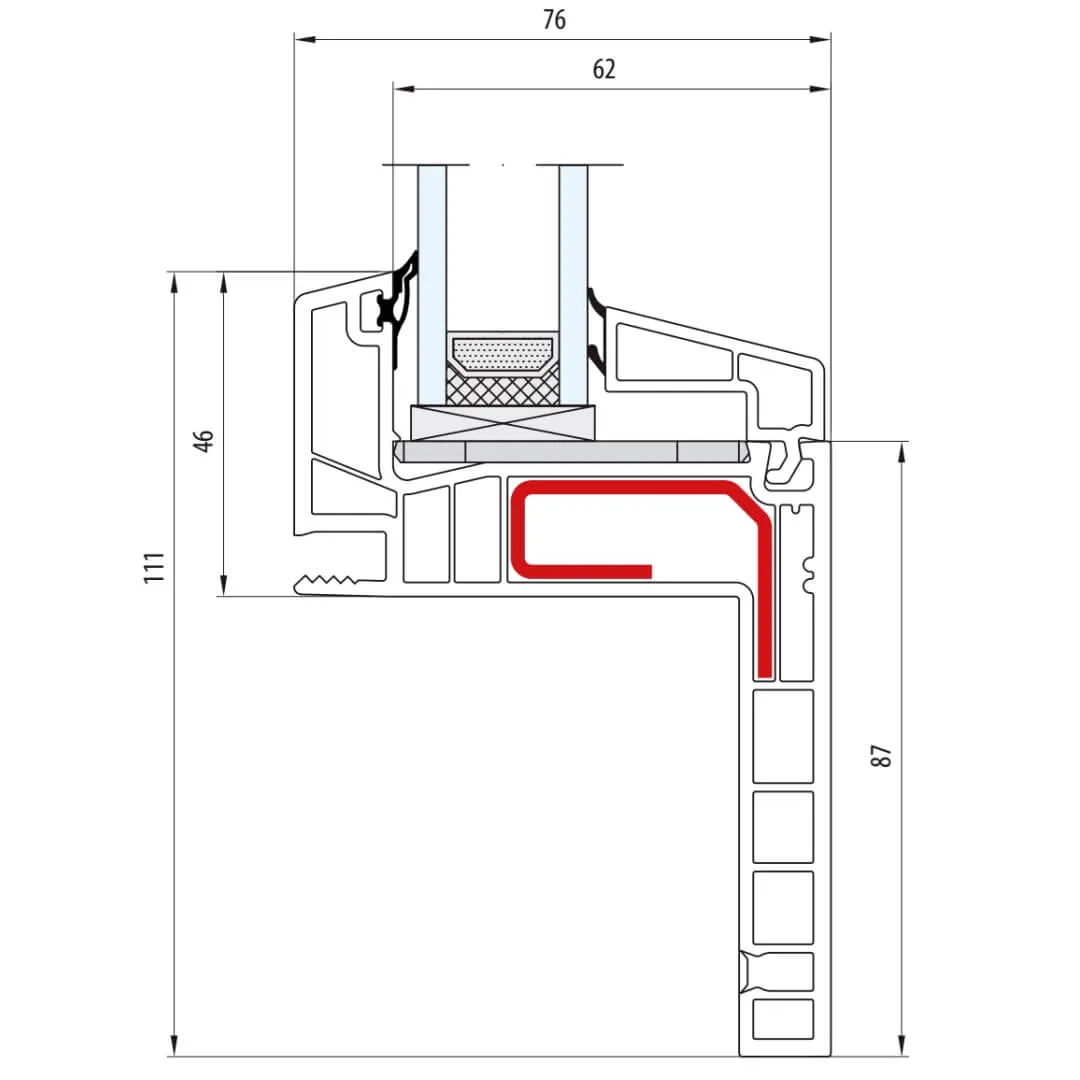

GreenEvolution 76 AD Renovation frame fix 65 mm 760019

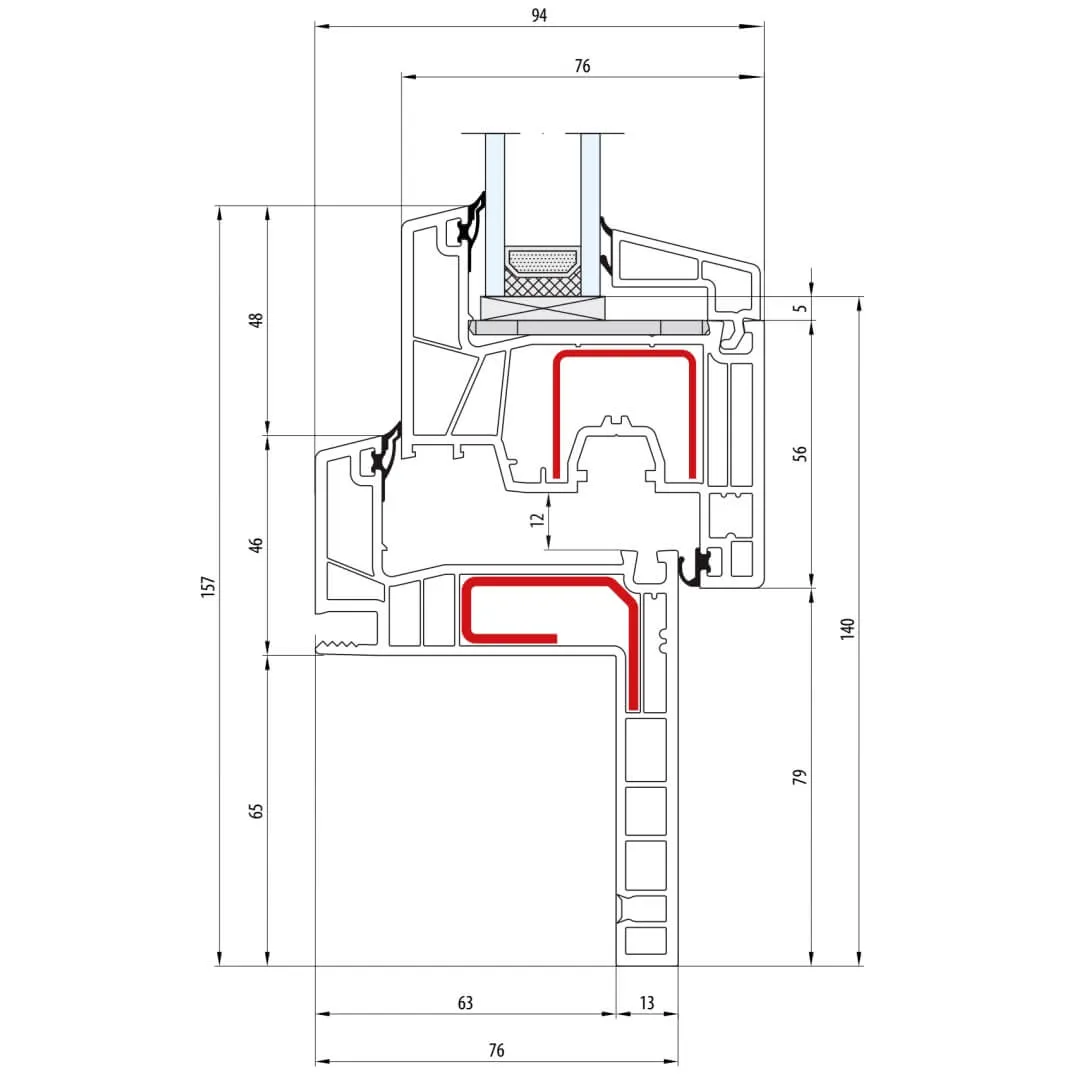

GreenEvolution 76 AD Renovation frame CL fin 65 mm – 760019 – 761002

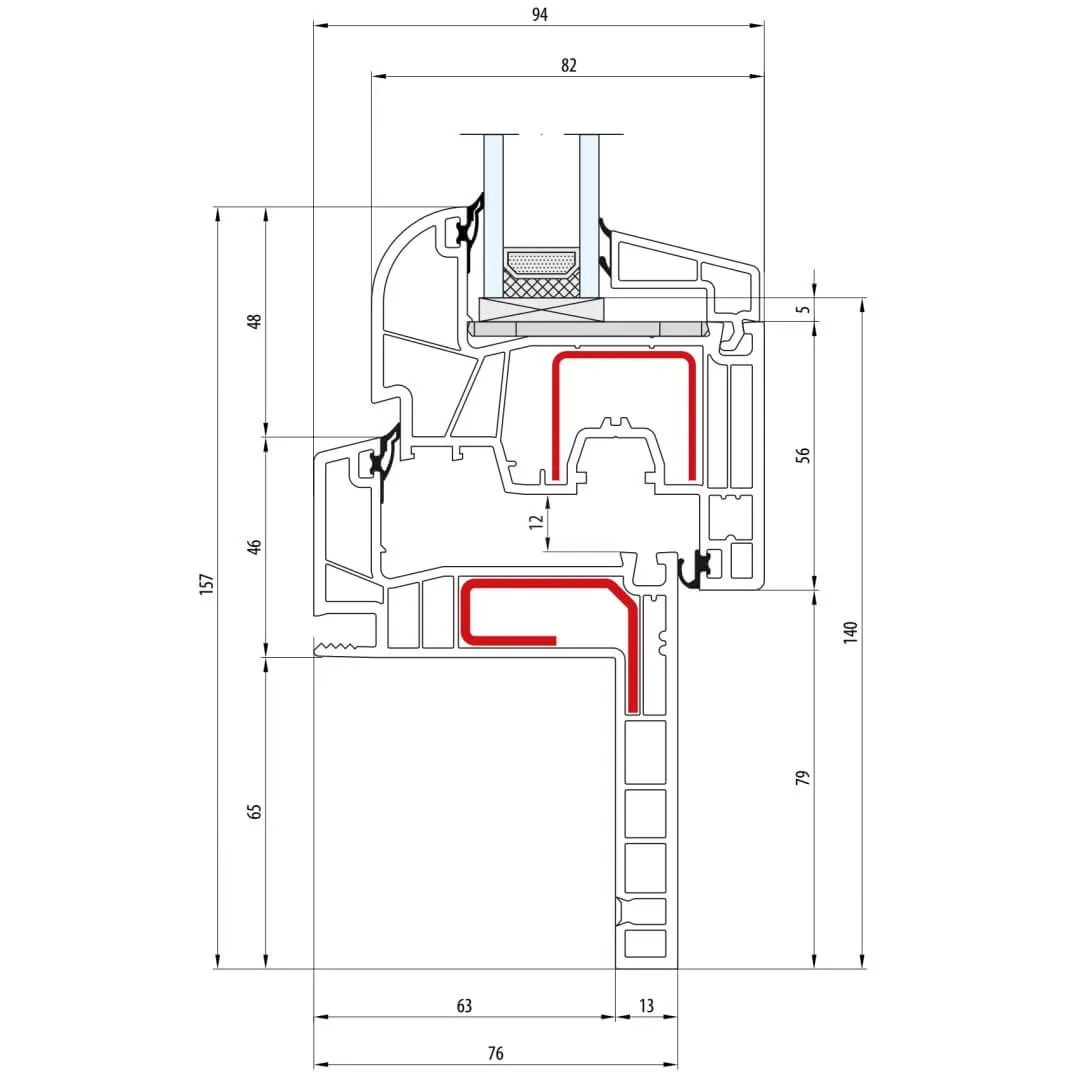

GreenEvolution 76 AD Renovation frame RL fin 65 mm – 760019 – 761004
UPVC Window – GreenEvolution 76 AD with mullion 90mm (narrow)
GreenEvolution 76 AD Mullion 90mm – 762005

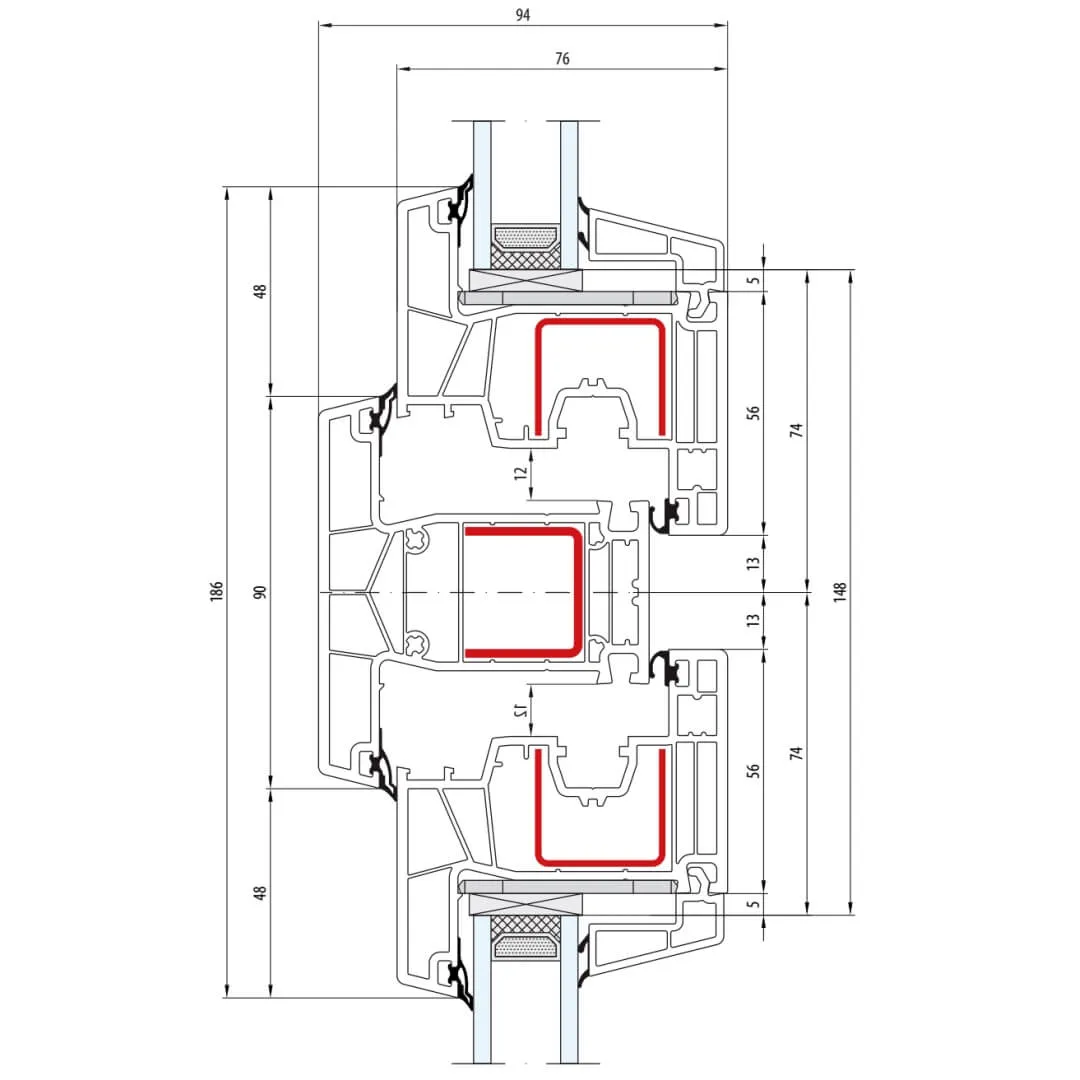

greenEvolution 76 AD Mullion 90mm window CL – 762005 – 761002

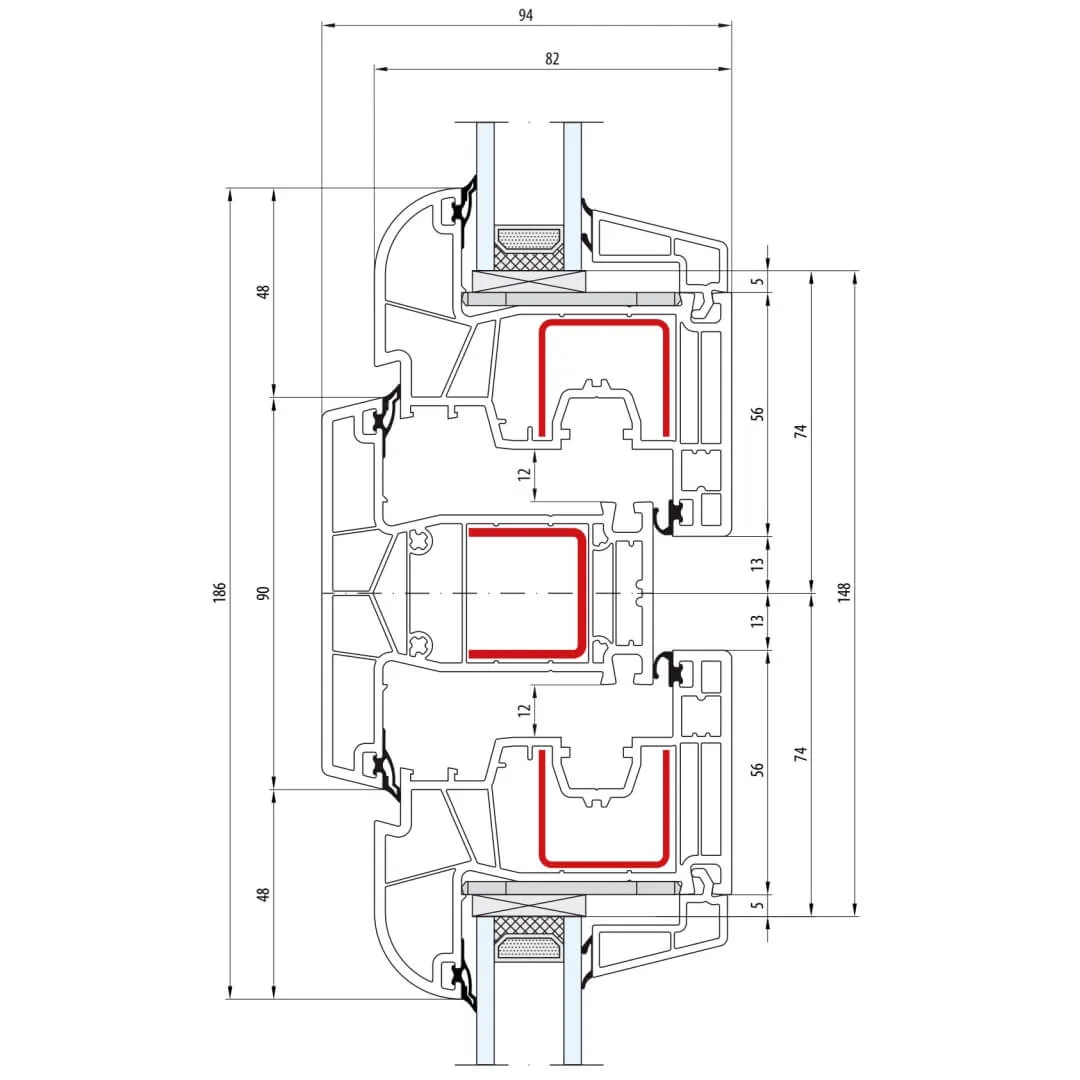

greenEvolution 76 AD Mullion 90mm window RL – 762005 – 761004
UPVC Window – GreenEvolution 76 AD/MD with mullion 90mm (narrow, structural)

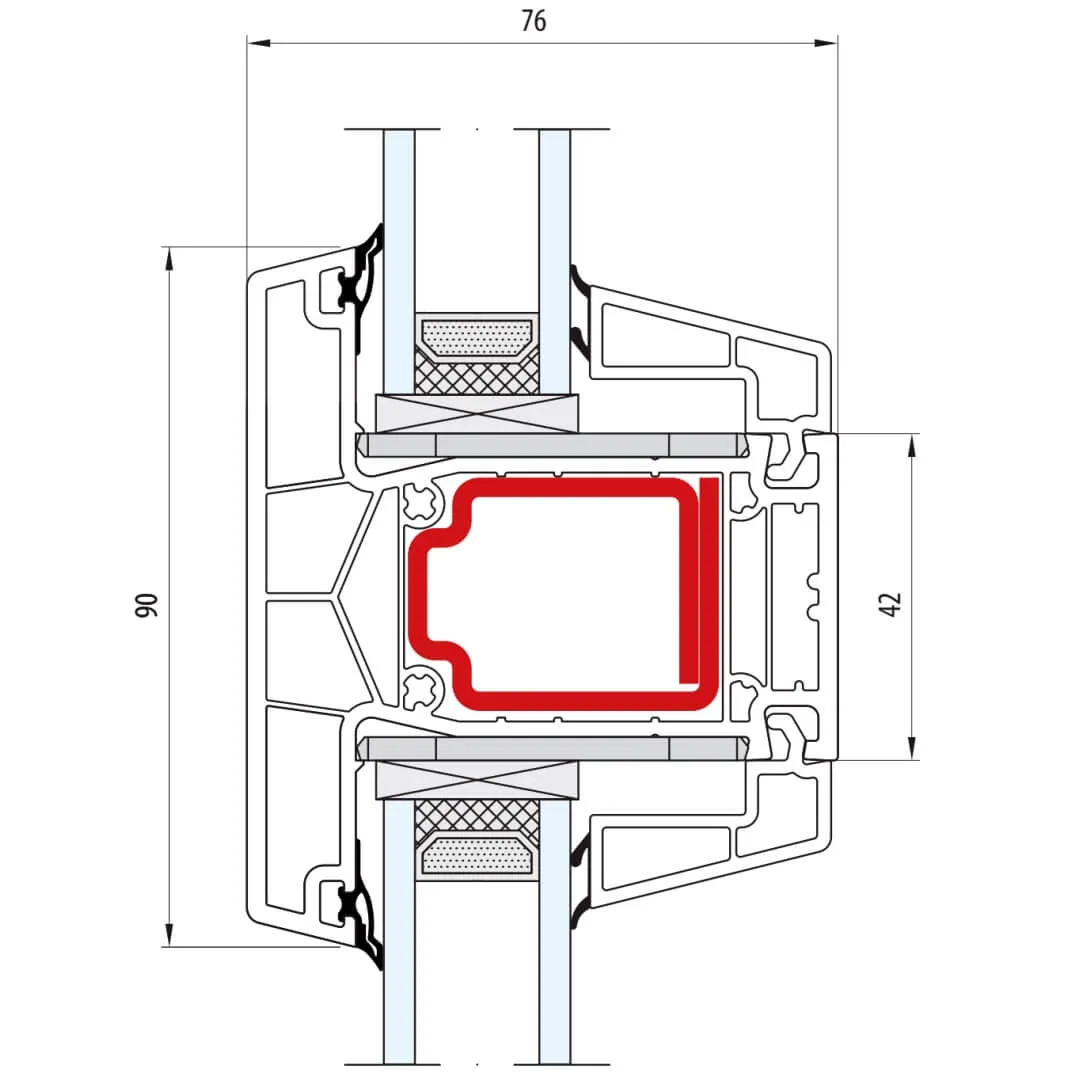

GreenEvolution 76 AD Mullion 90mm – 762007

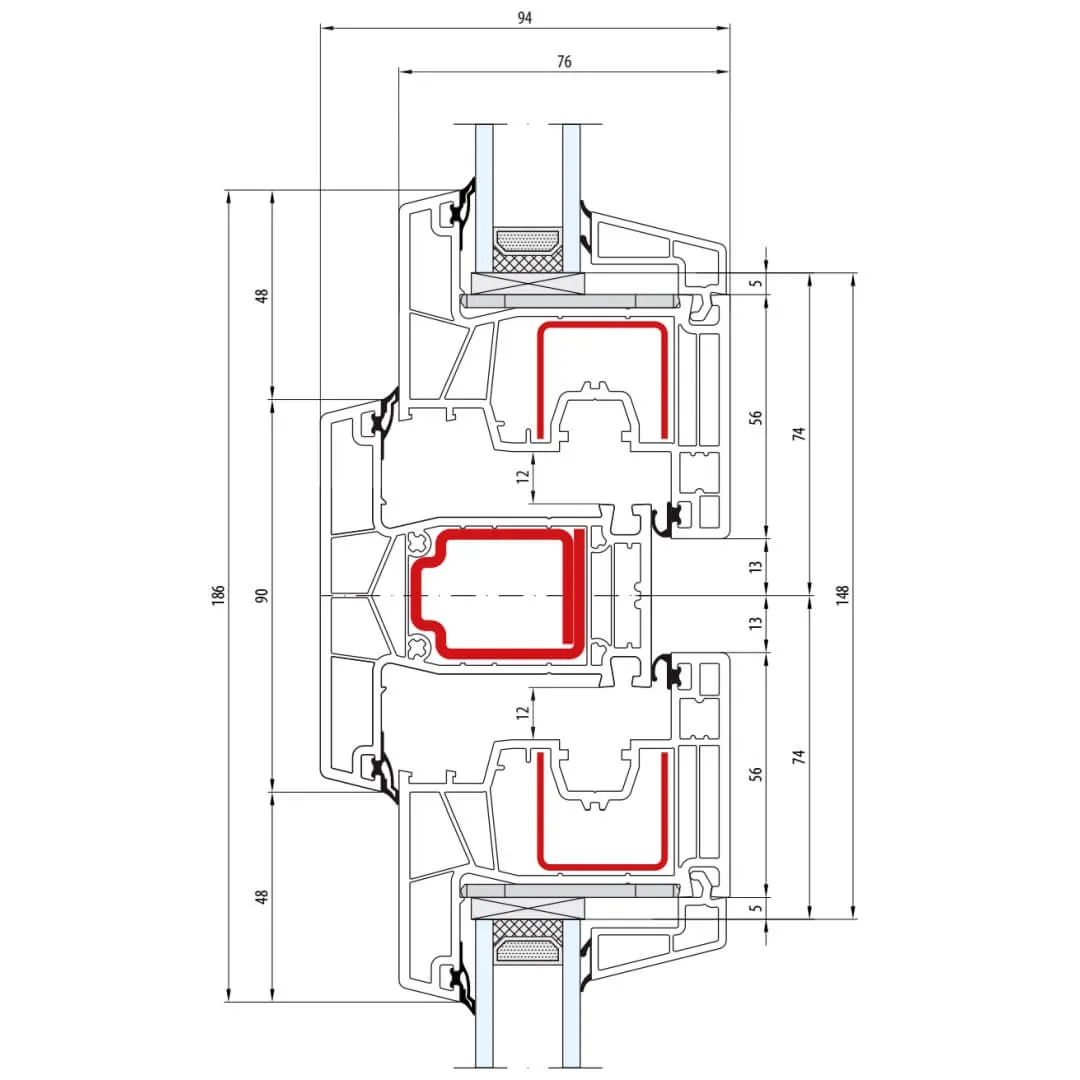

GreenEvolution 76 AD Mullion 90mm window CL – 762007 – 761002

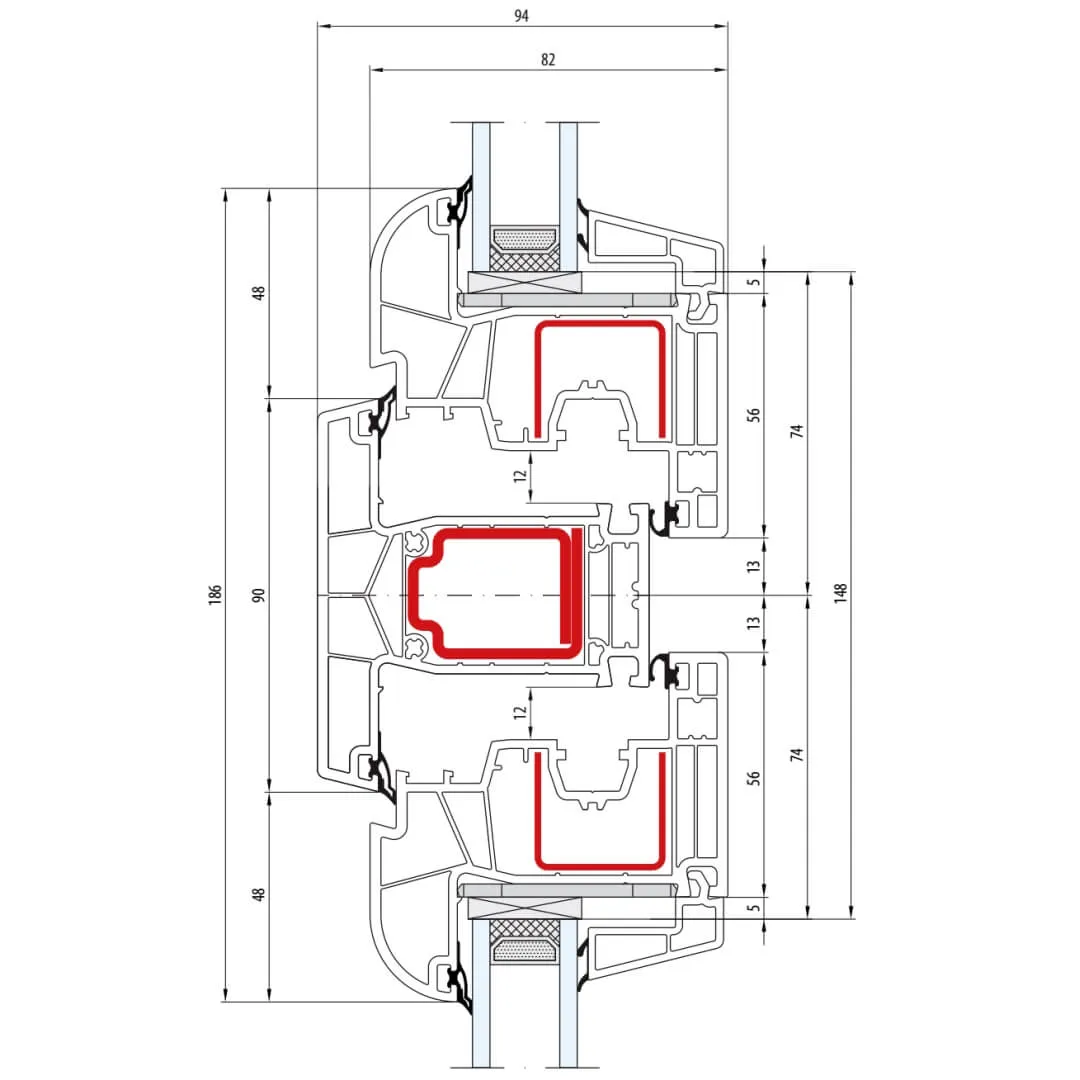

GreenEvolution 76 AD Mullion 90mm window RL – 762007 – 761004
UPVC Window – GreenEvolution 76 AD with mullion 110mm (wide)
GreenEvolution 76 AD Mullion 110mm – 762009

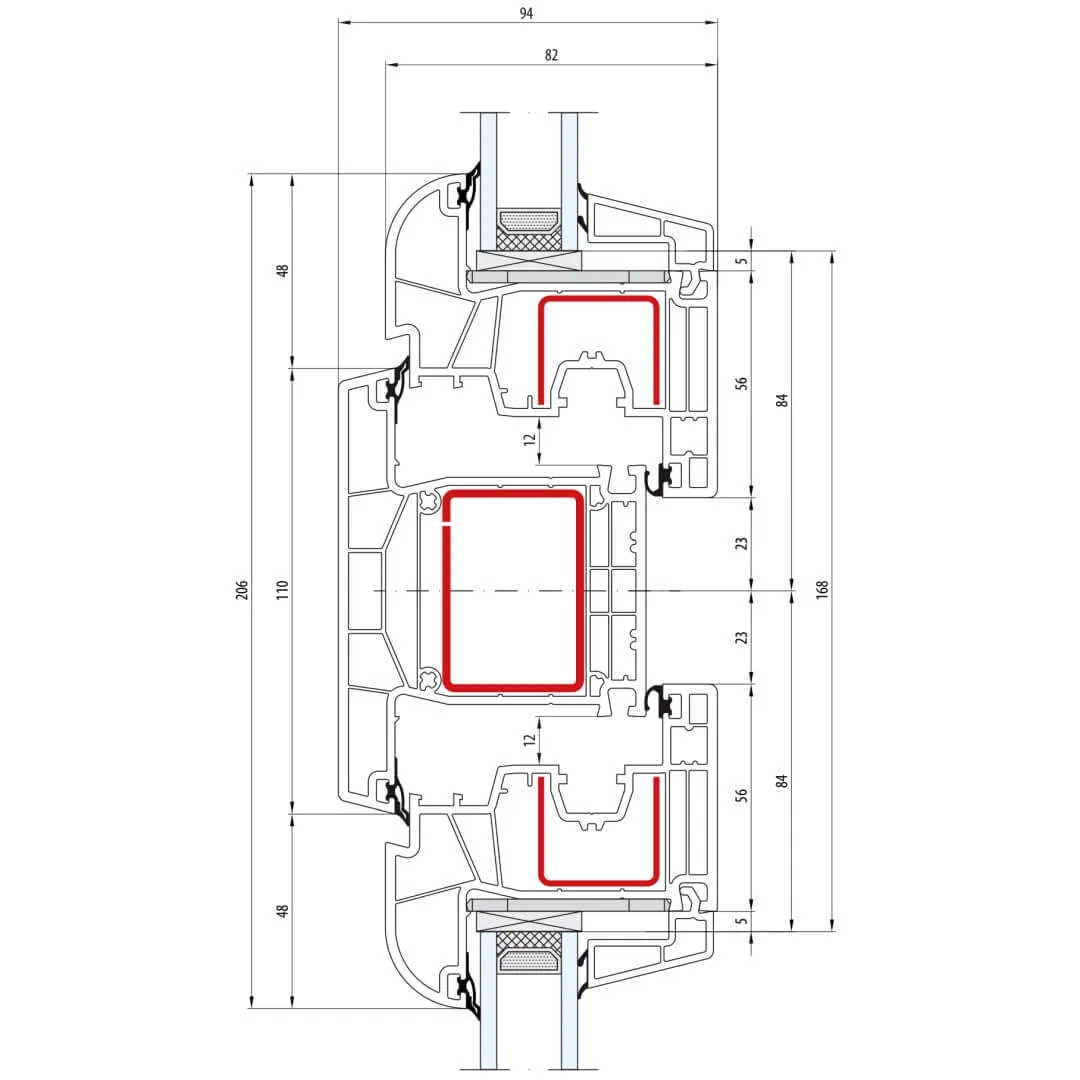

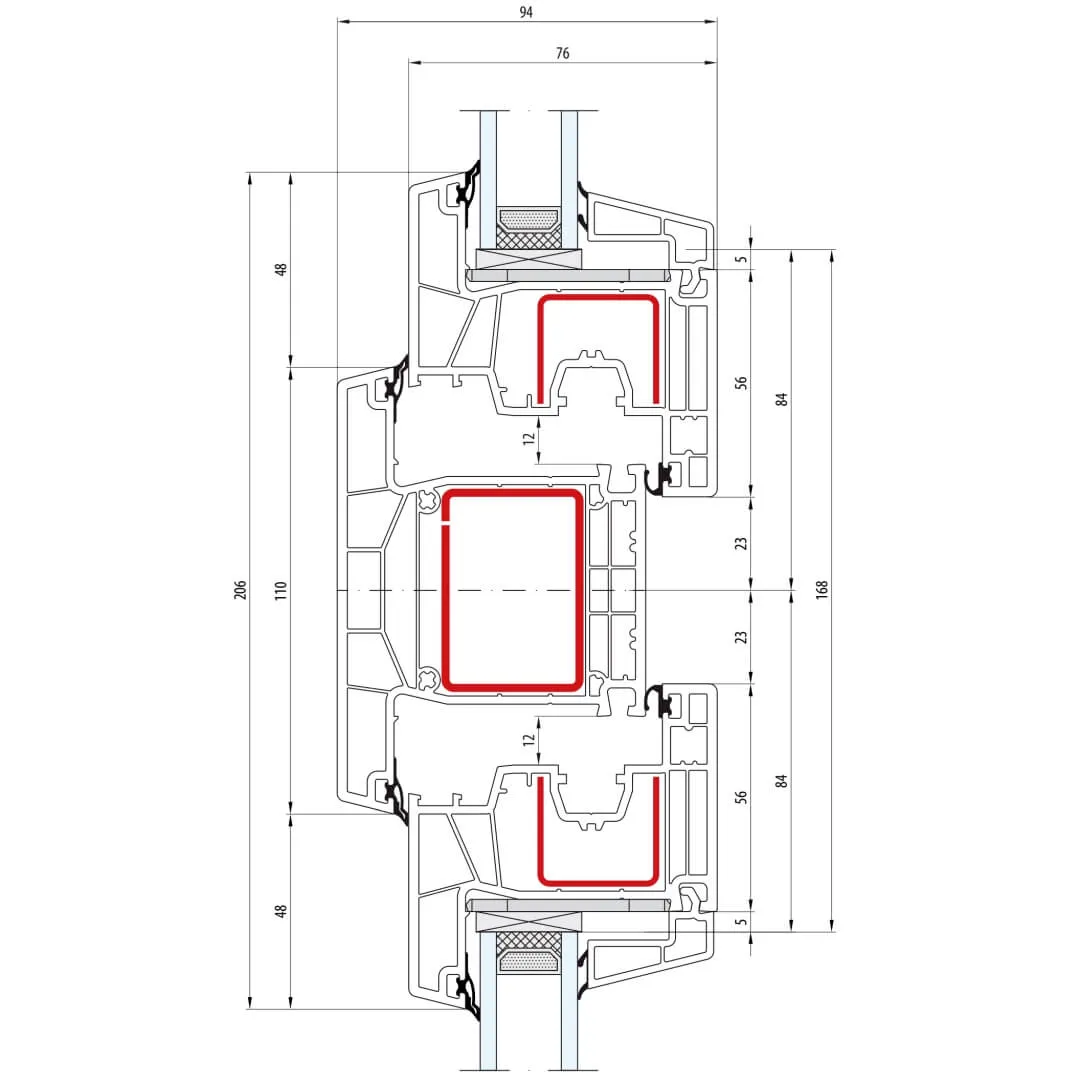

GreenEvolution 76 AD Mullion 110mm window CL – 762009 – 761002
GreenEvolution 76 AD Mullion 110mm window RL – 762009 – 761004
UPVC Terrace door – GreenEvolution 76
GreenEvolution 76 AD Terrace door CL – 760003 – 761002
GreenEvolution 76 Terrace door – low threshold 20mm CL – 761002
GreenEvolution 76 AD Terrace door RL – 760003 – 761004
GreenEvolution 76 Terrace door – low threshold 20mm RL – 761004
UPVC Terrace door – GreenEvolution 76 (112mm)
GreenEvolution 76 AD Terrace door open inside – 760003 – 761008
GreenEvolution 76 Terrace door open inside – low threshold 20mm – 761008
GreenEvolution 76 AD Terrace door open outside – 760003 – 761009
GreenEvolution 76 Terrace door open outside – low threshold 20mm – 761009
UPVC Entrance door – GreenEvolution 76
GreenEvolution 76 AD Door open inside – 760023 – 761014
GreenEvolution 76 Door open inside – low threshold 20mm – 761014
GreenEvolution 76 AD Door open outside – 760023 – 761015
GreenEvolution 76 Door open outside – low threshold 20mm außen öffnend – 761015
UPVC Entrance door – GreenEvolution 76 AD with mullion (90mm)
GreenEvolution 76 AD Mullion 90mm – 762007

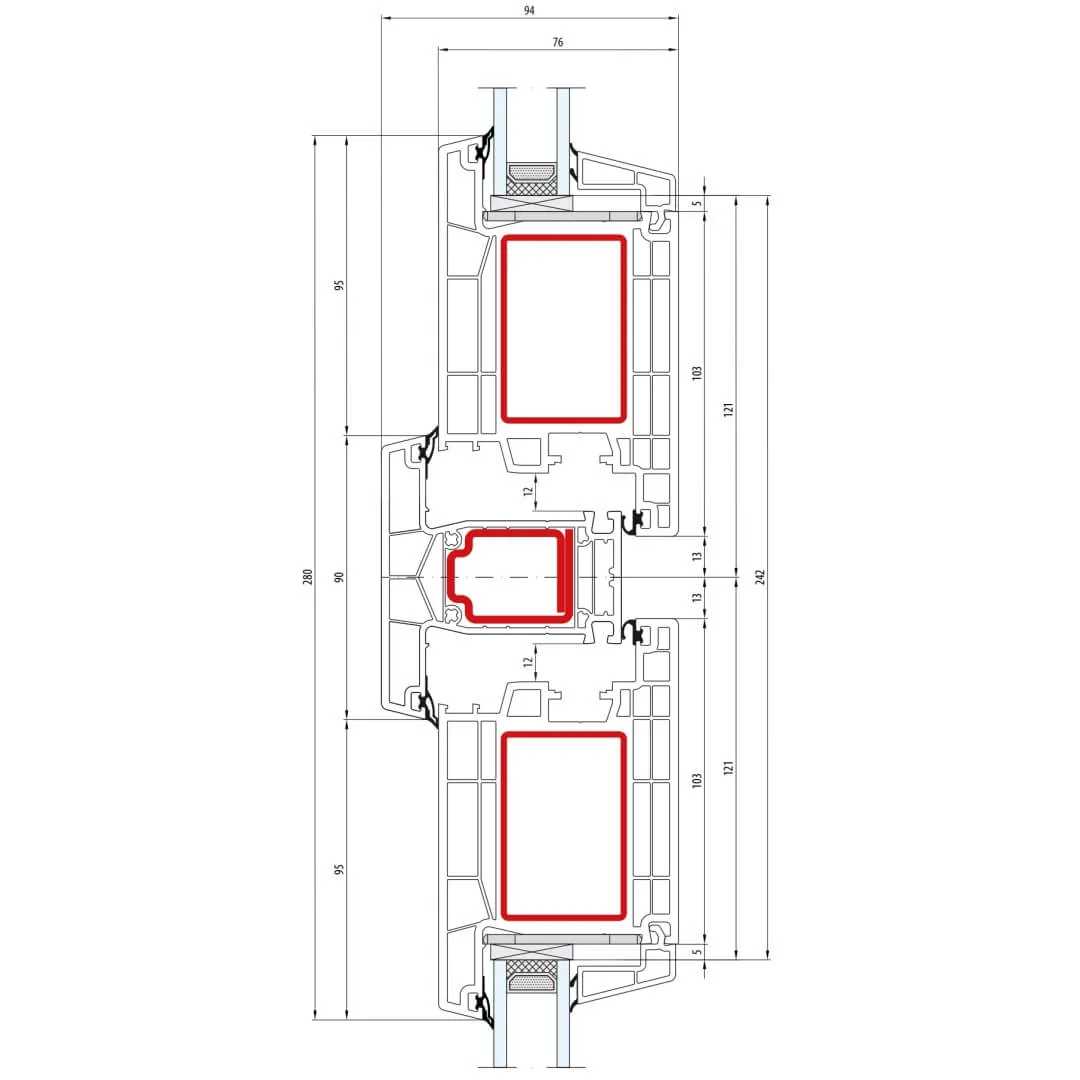

GreenEvolution 76 AD Mullion 90mm Door open inside – 762007 – 761014

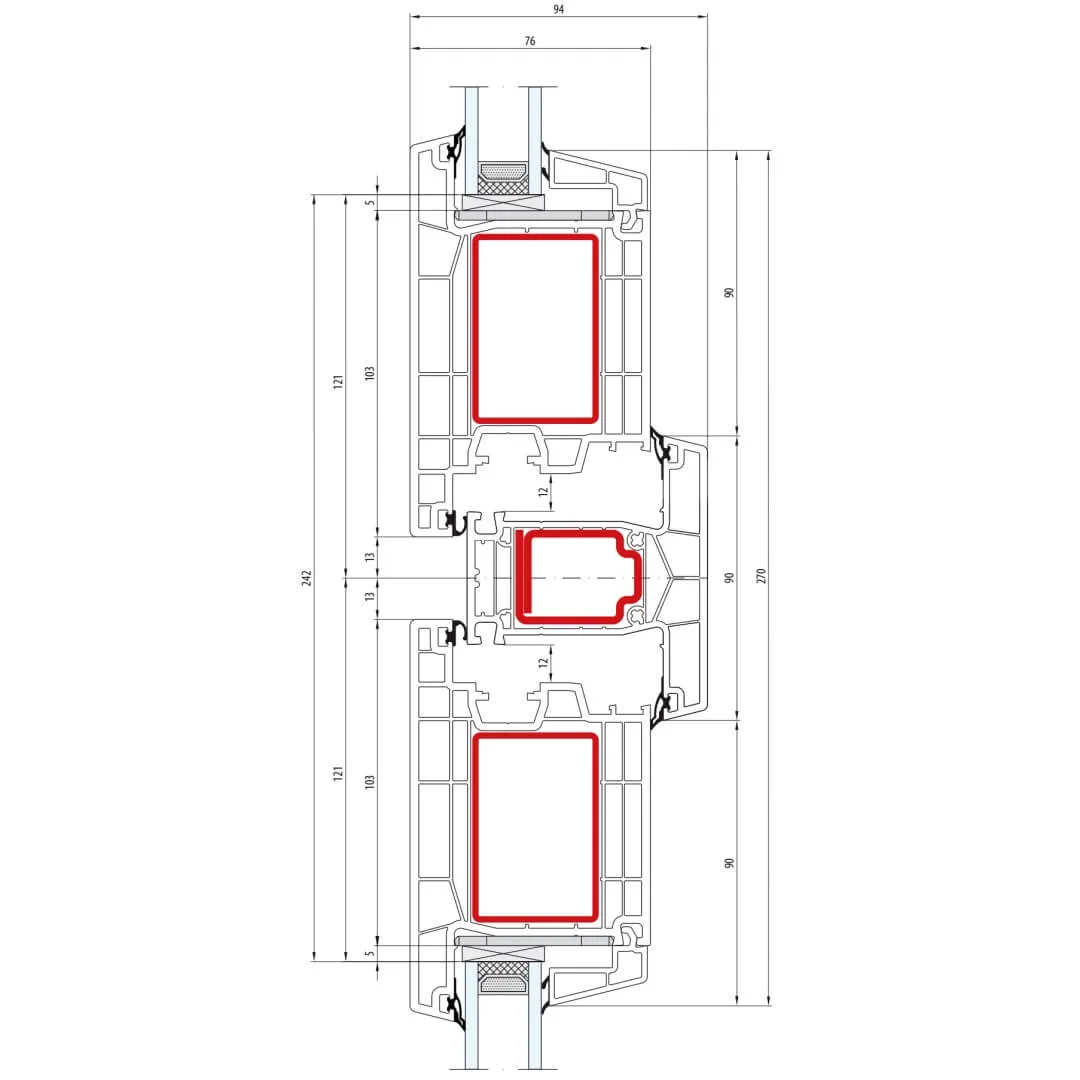

GreenEvolution 76 AD Mullion 90mm Door open outside – 762007 – 761015
UPVC Entrance door – GreenEvolution 76 AD with mullion (110mm)
GreenEvolution 76 AD Mullion 110mm – 762009

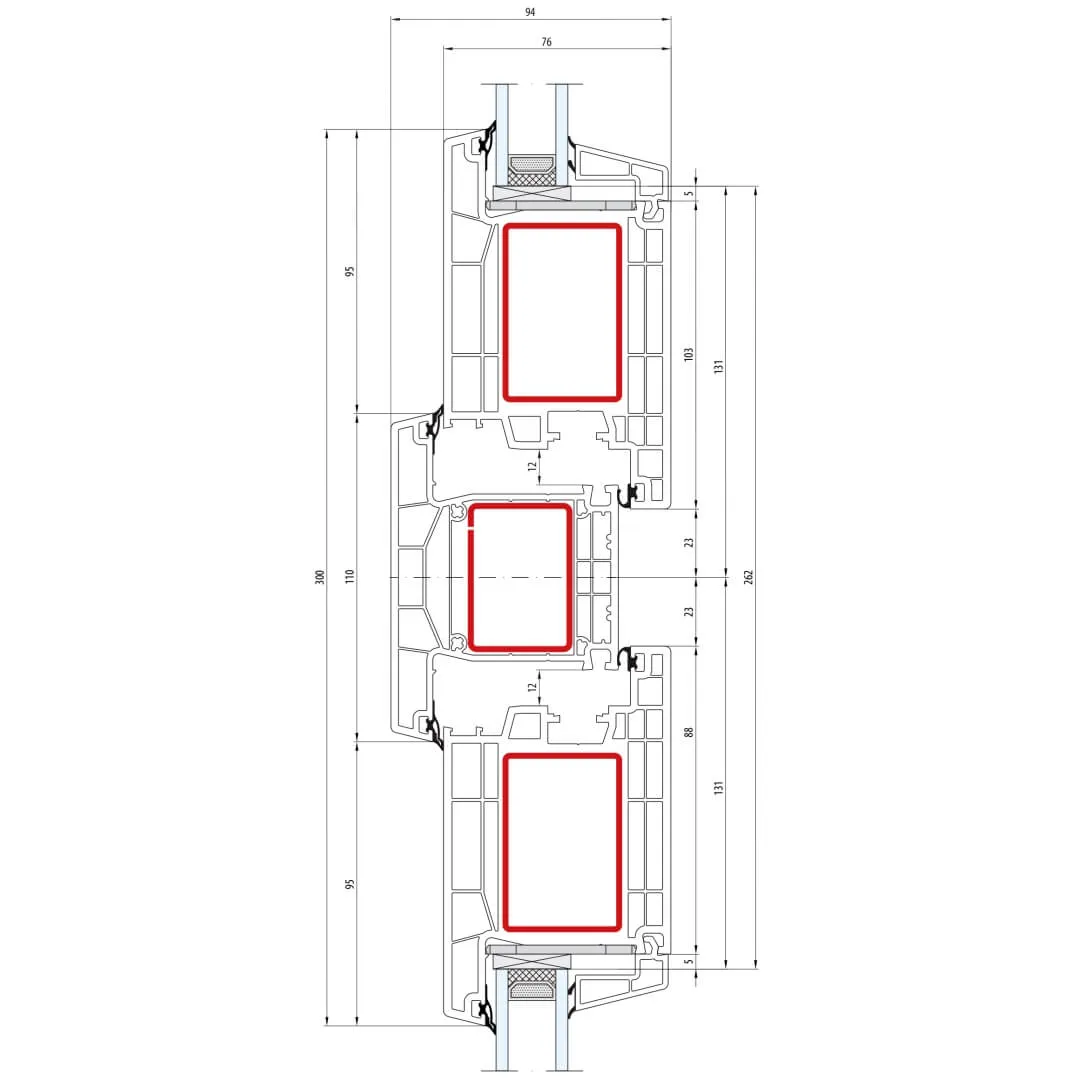

GreenEvolution 76 AD Mullion 110mm Door open inside – 762009 – 761014

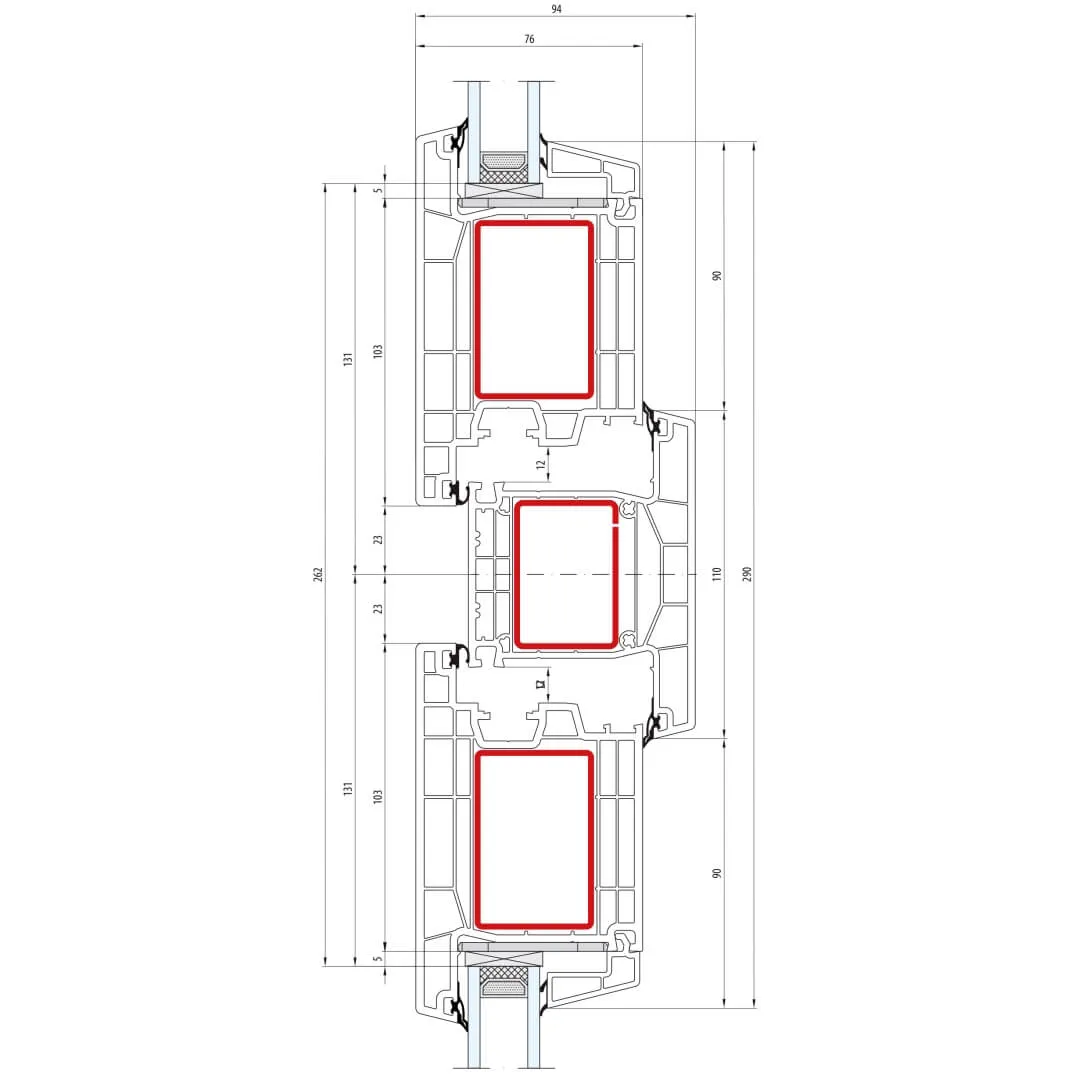

GreenEvolution 76 AD Mullion 110mm Door open outside – 762009 – 761015
Universal UPVC profiles
Internal muntins (Helima)
Internal muntin 8mm
Internal muntin 18mm
Internal muntin 26mm
Internal muntin 45mm
Glue-on Muntins
416 302 – Glue-on muntin – 27mm
416 304 – Glue-on muntin – 45mm
416 306 – Glue-on muntin – 65mm
UPVC Glas dividing muntins – Transom – GreenEvolution 76
GreenEvolution 76 AD Transom 90mm – 762005
GreenEvolution 76 MD Transom 90mm – 762006
GreenEvolution 76 AD Transom 110mm – 762009
UPVC Transport-protector
416 106 – Protector – 30mm
416 100 – Protector – 40mm
UPVC Click-on profiles
406 105 Click-on profile 20mm
406 139 Click-on profile 30mm
406 140 Click-on profile 40mm
UPVC Window sill profiles
416 110 Click-on window sill 145mm
416 115 Click-on window sill 165mm
406 115 Click-on window sill 105mm
UPVC Frame extensions – GreenEvolution 76
416 160 Frame extension 20mm
416 163 Frame extension 30mm
416 167 Frame extension 40mm
416 170 Frame extension 60mm
416 176 Frame extension 100mm
UPVC Connectors – GreenEvolution 76
406 255 – H-Connector universal
416 260 – H-Connector
416 264 Structural connector 6mm
416 273 Structural connector 15mm
416 269 – 416 311 Structural connector
UPVC Corner connectors – GreenEvolution 76
416 210 Corner connector 90 degree
NP0160 – 416 251 Corner connector flexible
416 240 Corner connector 135 degrees
UPVC Cover profiles – GreenEvolution 76
Flat strip
Flat strip with seall
Chamber profile
UPVC Corner profile
UPVC Corner profile
UPVC Chamber corner profile
Roller-shutter rails – GreenEvolution 76
Roller-shutter rail 33mm
Roller-shutter rail 48mm
Roller-shutter rail 74mm
Kunststoff Weitere Profile – greenEvolution 76
406 670 UPVC chamber cover profile
406 316 Wide cover strip
